Home / Products / Drills / HSS Step Drill

HSS Step Drill

Your Leading HSS Step Drill Supplier



Jiangsu NAIPU TOOLS company was founded in may, 2005, a private export-oriented scale manufacturing enterprise and stock company in Jiangsu province. NAIPU specializes in manufacturing all types of hss twist drill brts and related products. A HSS step drill allows you to drill different sized holes with a single bit. The bit is cone like shaped, so the further you drill into the material, the wider the hole will get. Step drills are mainly designed for drilling though thin metal and plastics, but they could also drill through wood.



Why Choose Us?

Professional Service

Jiangsu NAIPU TOOLS company provides excellent service and offers a minimum order quantity, which can perfectly meet customers' trial order requirements.





Advanced Equipment

We own advanced equipment, including Automatic machine for processing split point of drills, Automatic machine for processing edge ground of drill, Welding machine for taper shank drills, Rolling & Forging machine for drills and Featly and clean production line.

Wide Product Range

Naipu Tools Company manufactures high-quality products, such as HSS straight twist drill bit, HSS taper shank drill, 1/2" s&d drill, masonry drill, working drill and combination drill and related products.

Complete Qualifications

We hold the ISO9001 certification and have obtained both the SGS test report and SGS certification, thereby ensuring the superior quality of our products.





Introduction to HSS Step Drill





HSS step drills are cutting tools that feature multiple steps of increasing diameter. Each step is designed to drill a specific hole size, and they are commonly used in applications that require multiple hole sizes in a single piece of material.



Specifications of HSS Step Drill



Size

Shank
Size

Max Size

Min Size

Step
Increment

Number
of Steps

1

1/4

1/2

1/8

1/32

13

2

1/4

1/2

3/16

1/16

6

3

3/8

3/4

1/4

1/16

9

4

3/8

7/8

3/16

1/16

12

5

1/2

1 3/8

1/4

1/16

10



Functions of HSS Step Drill

Convenient (one tool for various holes)

Due to the feature of multiple diameters of the step drill, you can drill holes of different sizes by carrying just one step drill bit, or two if larger holes are needed, rather than several twist drills. Besides, a step drill is suitable for making holes in wood, plastic, metals and other materials.

Clean (smooth and burr-free)

By the CBN-ground sharp cutting edges, step bits can create smooth-walled and straight hole sides in the workpiece. The finished hole is burr-free and clean by the chamfer edge design for each step.

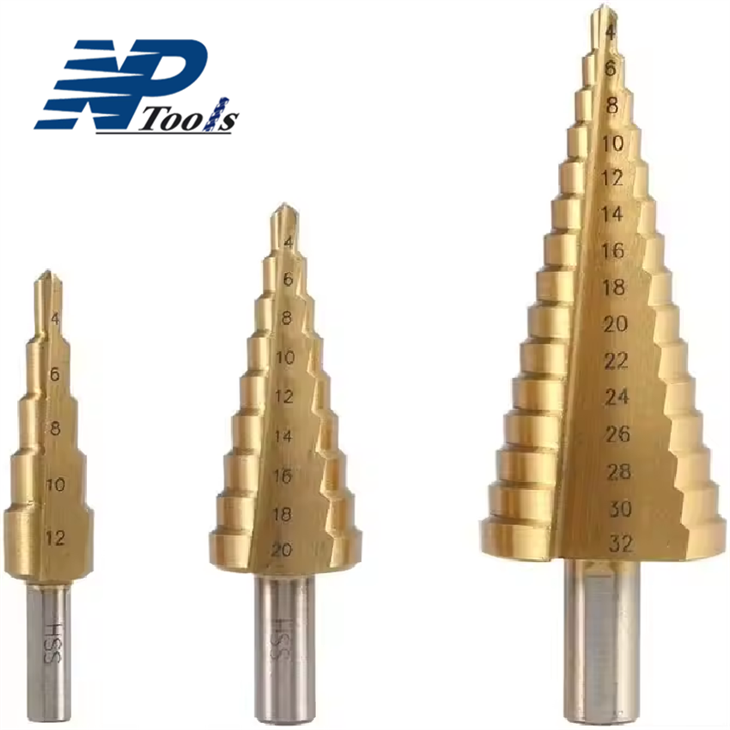

Straight Flute Step Drill
Spiral Flute Step Drill

Fast (no need to change drill bit)

As there is no need for a pilot hole or to switching between many twist drill bits, the step drill can shorten the cutting time of small holes. Additionally, the straight and spiral fluted design helps the step bit cutting through material smoothly without grabbing and it also guides the chip to go out which lead to a faster drilling process.

Multifunction (drill, enlarge and chamfer)

In addition to the basic function of drilling holes, step drills are usually used for enlarging the original hole. While drilling to a desired diameter, you can chamfer the hole surface with the bevel of the next step.



Surface Preparation of HSS Step Drill





Polished (Bright Finish)

● Polished drills do not have a coating, which helps increase chip flow in soft materials.
●  For use in aluminum, wood and plastic.



TiN (Titanium Nitride - Gold Color)

● Built to take on the tough job of cutting through steel rebar in concrete structures.
● Have replacement heads and shanks.
● Come in complete sets.



TiAlN (Titanium Aluminum Nitride - Violet Black Color)

●  Cut like a drill, gradually grinding the building material to create a hole.
●  Require constant pressure from the user.
●  Are less productive than hammer bits.





Usage of HSS Step Drill


Cutting Holes in Thin Metal:
Step drill bits excel at drilling precise holes through thin metal sheets. Their straight flute design prevents the material from twisting out of shape during drilling, resulting in clean and accurate holes. With each step typically 1/4" in size, these bits are effective for metal sheets up to 1/4" thick. Additionally, flipping the metal sheet and drilling from the opposite side can effectively double the thickness that can be cut through.



Cutting Holes in Plastic Sheets:
They can also be used for cutting holes through plastic sheets. This process does not require lubricating oil thus creating clear clean holes without causing any cracks and damage.



Enlarging Holes in Sheet Metal and Plastic Sheets:
One of the practical uses of step drill bits is enlarging existing holes in thin sheet metal or plastic. Their design allows the bit to remain centered even as the hole is enlarged, ensuring precise and uniform results. This versatility makes step drill bits invaluable for various repair and modification tasks in metalworking and plastic fabrication projects.



Deburring Holes:
Step drill bits are also effective for deburring holes in sheet metal. By lightly touching the next largest step, these bits remove burrs and sharp edges, leaving a clean and smooth hole surface. This deburring capability saves time and effort, especially when working with multiple holes in metal sheets, ensuring professional-quality finishes.



Other Services





1
productcate-1-1

Packing

Loose, Plastic Package, Black Strips, G.I Strips

2
productcate-1-1

Delivery Time

15~30days

3
productcate-1-1

Shipment

20GP, 40GP, And Bulk Vessel

4
productcate-1-1

Payment Terms

(1) T/T: 30% Advanced Payment, Balance Payment Against The Copy Of B/L. (2) 100% LC At Sight



FAQ



Q: Visting factory is allowed or not?

A: Yes, we welcome customers visiting our factory. Our factory is located Danyang city, Jiangsu, China mainland.

Q: Can you do OEM and ODM?

A: Yes, OEM is acceptable. The material, color, style can customize, the basic quantity we will advise after we discuss.

Q: Can we use our own logo?

A: Yes, we can print your private logo according to your request.

Q: Can we get some samples? Any charges?

A: Yes, free existing labels, you need to pay shipping cost.

Q: What is a HSS step drill used for?

A: HSS step drills are mainly used to cut holes in metal. They are also used to drill wood, acrylic, and other plastics, but one limiting factor of the HSS step drill is that they are only suitable for cutting thin materials, such as sheet metal. The material has to be 5mm thick or thinner for the step drill to be able to drill through it.

Q: How does a HSS step drill work?

A: HSS step drills are extremely easy to use; you simply put it into your drill, like every other drill bit. How deep you drill through the material depends on how wide you need the hole to be. The diameter of each step is marked on the side of the step drill, allowing you to easily create the correct size hole.

Q: Why use a HSS step drill?

A: There are many different advantages and reasons why you May want to use a HSS step drill. The main reason is to provide a very smooth and clean finish on any hole in metal or plastic. They are also great at drilling precise holes so are very efficient and effective for specific cuts needed, which, for example, a plumber or electrician May need to do.

Q: Can you use a HSS step drill bit on wood?

A: HSS step drills are mainly designed for drilling though thin metal and plastics, but they could also drill through wood. This isn't the most popular option for drilling through wood as it won't produce as clean or fast a cut compared to other drill bits.

We're professional hss step drill manufacturers and suppliers in China. Please feel free to wholesale high quality hss step drill for sale here from our factory. For more discount information, contact us now.
